WiFi Internet adapter configuration.
First take the ethernet cable and connect to your computers ethernet port. Next plug in the power cube and connect to the ecb3500.
You can purchase our WiFi adapter for av equipment here
We are going to show you how to use the unit to connect to a remote access point in easy steps.
1) set your computer IP address to 192.168.1.100
2) log into the ecb3500 at 192.168.1.1 un admin pw admin, click on system / system properties select client bridge mode and hit apply.

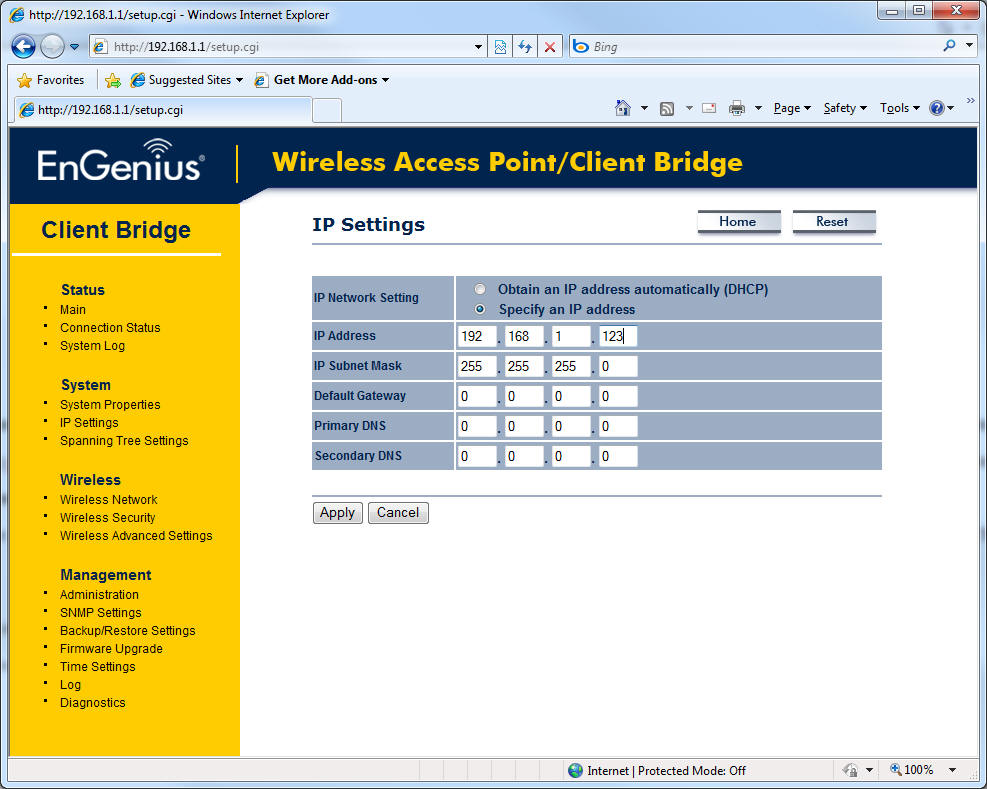

3) click on system / ip settings make the following changes and hit apply (the address of the unit will now be 192.168.1.123 do not forget this)
6) log into the unit at 192.168.1.123, Now lets turn the power up on this puppy click on wireless / wireless advanced and select 28dBm hit apply.
7) click on wireless / wireless network site survey button , select your AP to connect to by clicking the MAC address and click apply. (if the AP has encryption enabled you must enter the key under encryption)
8) Click on status connection status you should see associated next to connection status.
.jpg)
You can now disconnect the ECB3500 from your computer connect to your AV equipment.
To manage the bridge in the future go to 192.168.1.123 and follow step 6.
