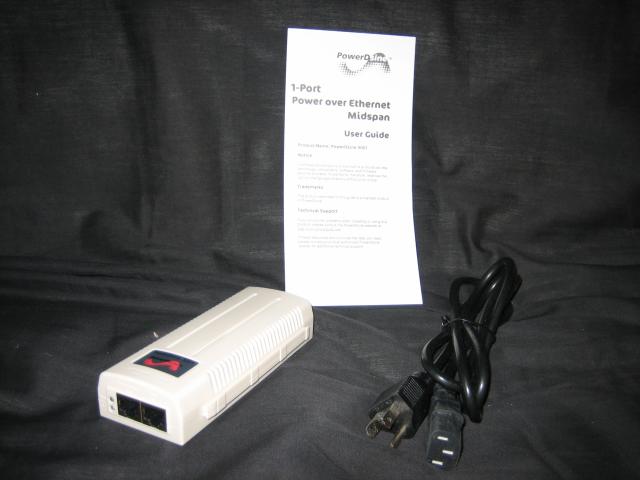

Compact and Cost-Effective 1-Port Power over Ethernet Midspan

Works with Engenius ecb-3610s, ecb-3220, ecb-8610s and 2611cb3

Works with Ruckus Zoneflex 2942 access points

Units slide together and do not require a power brick

48v active injector sends power over ethernet up to to 300 feet

Fully compatible with IEEE 802.3af standard or legacy Cisco powered devices.

Cost-effective power distribution for WLAN access point installations. Safe powering of standard compliant,as well as Pre-standard end-terminals. Investment protection of existing Ethernet switches and cabling infrastructure. Saves time and reduces installation costs. Easy plug-and-play installation. Several units can be mounted adjacently for powering more than one Ethernet terminal. Cleans up low-density wireless LAN deployment and eliminates the need for multiple one-port PoE solutions.

features: Compact Design - PowerDsine's 3001 is a small and compact standalone product. No additional components are needed. Just add an IEC320 standard line cord. Standard Compliance - PowerDsine's 3001 PoE midspan is fully compatible with IEEE 802.3af standard or legacy Cisco powered devices. It features a standard auto-sensing algorithm and provides safe power to remote terminals. PowerDsine® 3001 Midspan Safe and reliable powering of WLAN access points. Automatic detection and protection of non - standard Ethernet terminals. Compact design - specifically tailored for WLAN access point installation. Unique interlocking feature - to connect multiple units. Upgrade Legacy Ethernet Switches - The PowerDsine 3001 Power over Ethernet (PoE)midspan connects to legacy Ethernet infrastructure,enables users to upgrade their existing Ethernet switches and provide power over Ethernet capabilities. The PowerDsine 3001 generates safe power over standard Category 5 cabling. By sending 48V, Ethernet terminals such as wireless LAN access points,IP Phones and network cameras are powered remotely. An external splitter may be installed where a device is not standard compliant. Scalable Design - PowerDsine’s 3001 has an exclusive interlocking feature which connects multiple units together side by side to support more than one wireless LAN access point. It is especially designed for small business and low-port density installations. Centralized Power Distribution - Deploying a PoE midspan in conjunction with a central UPS provides a cost-effective way to distribute backup power and ensures uninterrupted operation of the network during electrical power failur Easy to Install - PowerDsine's 3001 Power over Ethernet midspan is a plug-and-play device. Once turned on, it automatically detects the Power over Ethernet terminal and supplies Power over Ethernet. Concise LED Display - The PowerDsine's 3001 has two LEDs, indicating normal, overload or short-circuit conditions Internal AC/DC converter - no need for external power brick.

Parameter Description No. of Ports 1 Data Rates 10/100 Mbps Power over Ethernet Output Pin Assignment and Polarity: 4/5 (+),7/8 (–) Output Power Voltage: -48 User Port Power: 15.4W min. Input Power Requirements AC Input Voltage: 90 to 264 Vac AC Input Current: 0.5A @110–220 Vac AC Frequency: 47 to 63 Hz Dimensions 60 mm (W)x 31 mm (H)x 145 mm (L) Weight 1 lbs (450 g) Indicators System Indicator: AC Power (Green) User Indicator: Channel Power (Green) Connectors Shielded RJ–45,EIA 568A and 568B Environmental Conditions Operating Ambient Temeprature: 32° to 104°F (0 to 40°C) Operating Humidity: Maximum 90%, non-condensing Storage Temperature: –4° to 158°F (–20° to 70°C) Storage Humidity: Maximum 93%, Non-condensing Operating Altitude: –1000 to 10,000 ft.(–304.8 to 3048 m) Regulatory Compliance CE Electromagnetic Emission & Immunity FCC Part 15, Class B with FTP cabling EN 55022 (CISPR 22)Class B with FTP Cabling EN 55024 (CISPR 24) Safety Approval UL/cUL per EN 60950 GS Mark per EN 60950
