eoc-3220

The EOC-3220 series will be discontinued soon please transition to the EOC-2610 as soon as possible we have created this forum thread to answer your questions about the differences in the two units.

Click here for more information on Universal Wireless Repeater

400mW RF output power for greater range power level can be controlled for flexable deployment.

CLICK HERE FOR CONSOLE CABLE THIS IS USED TO RESET THE UNIT IF YOU FORGET THE IP OR LOCK YOURSELF OUT.

NOTE: This device has adjustable power output and ships in the lowest setting high. To increase the power output to 400mW go to wireless advanced setting and change output power level to extreme.

CLICK HERE FOR RESELLER PRICED 10 PACK

Integrated 9dBi directional patch antenna. The beamwidth on the 9dBi patch antenna is 30 degrees horizontal and 30 degrees vertical.

802.3af PoE compatible for flexible deployment 48v injector included.

802.11 b/g wireless Client Bridge/Access Point

IP67 rated enclosure for high resistance against dust, water, and weather conditions

includes pole mounting hardware and grounding strap.

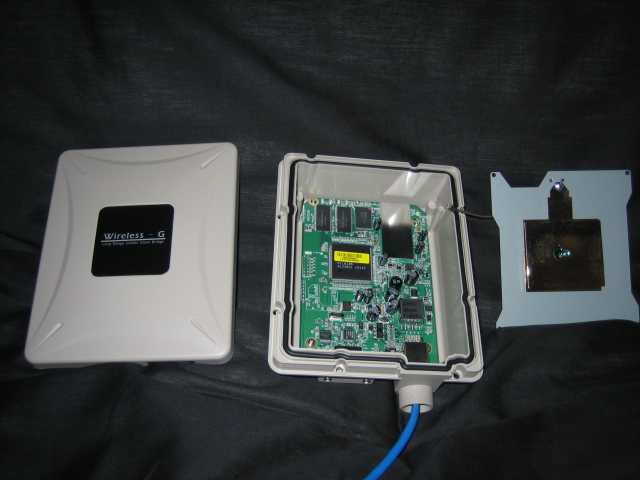

There is a u.fl connector inside the case you can run a pigtail through the ethernet port for mounting an external antenna.

Click here for U.FL pigtail

* Product Description : The Outdoor Wireless Multi-Client Bridge/Access Point/ WDS (wireless distribution system) operates seamlessly in the 2.4 GHz frequency spectrum supporting the 802.11b (2.4GHz, 11Mbps) and the newer, faster 802.11g (2.4GHz, 54Mbps) wireless standards. It's the best way to add wireless capability to your existing wired network, or to add bandwidth to your wireless installation. To protect your wireless connectivity, it can encrypt all wireless transmissions through 64/128-bit WEP data encryption and also supports WPA. The MAC address filter lets you select exactly which stations should have access to your network. With the Wireless Multi-Client Bridge/Access Point/WDS, you'll experience the best wireless connectivity available today.

* Product Features : Features Benefits High Speed Data Rate Up to 54Mbps Capable of handling heavy data payloads such as MPEG video streaming High Output Power up to 26 dBm Excellent output power spreads the operation distance IEEE 802.11b/g Compliant Fully Interoperable with IEEE 802.11b/IEEE802.11g compliant devices Point-to-point, Point-to-multipoint Wireless Connectivity Let users transfer data between two buildings or multiple buildings WPA/ IEEE 802.1x Authenticator support Powerful data security WDS (Wireless Distribution System) Make wireless AP and Bridge mode simultaneously as a wireless repeater Watertight and Weatherproof Avoid water invaded and weather corroded Wide temperature range and robust mechanical design Delivers reliable, top performance in the most demanding environments Power-over-Ethernet (IEEE802.3af Compliant) Flexible Access Point locations and cost savings

Radio: Frequency Band: 2.4–2.484GHz Media Access Protocol: Carrier Sense Multiple Access with Collision Avoidance(CSMA/CA) Radio Type: Direct Sequence Spread Spectrum(DSSS) Operation Channels: 11 for North America RF Output Power (Typical): 24dBm @ 1,2,5.5 & 11Mbps 23dBm @ 6,9,12 & 18Mbps 22dBm @ 24 & 36Mbps 21dBm @ 48 & 54Mbps RF Connector: SMA Type Receive Sensitivity (Typical): -94dBm @ 1Mbps -92dBm @ 2Mbps -89dBm @ 5.5Mbps -86dBm @ 11Mbps -92dBm @ 6Mbps -90dBm @ 9Mbps -88dBm @ 12Mbps -86dBm @ 18Mbps -83dBm @ 24Mbps -79dBm @ 36Mbps -74dBm @ 48Mbps -72dBm @ 54Mbps Modulation *OFDM: DBPSK @ 1Mbps DQPSK @ 2Mbps CCK @ 5.5&11Mbps BPSK @ 6&9Mbps QPSK @ 12&18Mbps 16-QAM @ 24&36Mbps 64-QAM @ 48&54Mbps

* Spec. : Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps Standards IEEE802.11b/g, IEEE802.1x, IEEE802.3, IEEE802.3u Compatibility IEEE 802.11g/ IEEE 802.11b Power Requirements Active Ethernet (Power over Ethernet) -48 VDC/0.7A External Unit: Auto sensing 100/240 VAC; 50/60 Hz Surge Arrester (Option) 20KA Surge Current Regulation Certifications FCC Part 15/UL, ETSI 300/328/CE RF Information Frequency Band 2.400~2.484 GHz Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) Modulation Technology Orthogonal Frequency Division Multiplexing (OFDM) DBPSK @ 1Mbps DQPSK @2Mbps CCK @ 5.5 & 11Mbps BPSK @ 6 and 9 Mbps QPSK @ 12 and 18 Mbps 16-QAM @ 24 and 36 Mbps 64-QAM @ 48 and 54 Mbps Operating Channels 11 for North America, 14 for Japan, 13 for Europe, Available transmit power (Typical) 25dBm Min. @1, 2, 5.5 and 11Mbps 23dBm Min. @6, 9, 12, 18Mbps 22dBm Min. @24, 36Mbps 21dBm Min. @48, 54Mbps RF Connector u.fl internal connector Networking Topology Ad-Hoc, Infrastructure Operation Mode Point-to-Point/ Point-to-Multipoint Bridge/ AP/ Client Bridge/ WDS Interface One 10/100Mbps RJ-45 LAN Port Security IEEE802.1x authenticator / RADIUS client (EAP-MD5/TLS/TTLS) support in AP mode WPA2/WPA/ Pre Share KEY (PSK)/ TKIP/ AES MAC address filtering Hide SSID in beacons IP Auto-configuration DHCP client/server Management Configuration Web-based configuration (HTTP) Telnet configuration SNMP V1(MIBI, MIBII) Firmware Upgrade Upgrade firmware via web-browser Serial Interface (RS-232) TFTP Physical Dimensions 163.8(L)mm * 135.2(W)mm * 47.0(H)mm Weight 1.2 Kg (2.6 lbs) Environmental Temperature Range Operating: -20C to 60C (-4F to 140F) Storage: -40C to 80C (-40F to 176F) Humidity (non-condensing) 5%~95% Typical
