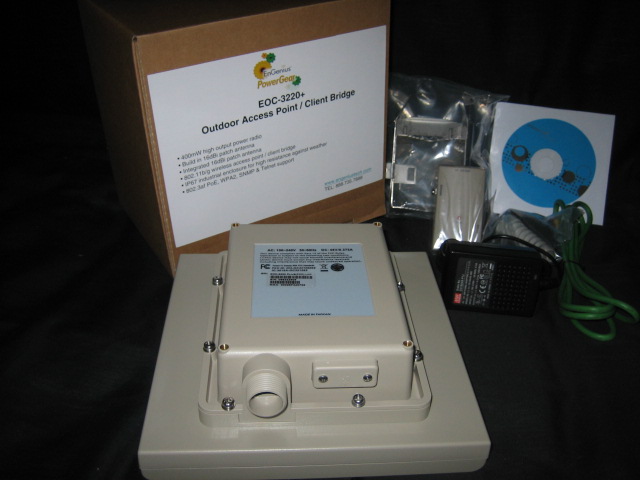

eoc-3220 plus
Now supports Universal Wireless Repeater allowing the 3220 to connect to any 802.11bg access point and repeat the signal.
The EOC-3220 series has been discontinued please transition to the EOC-2610 we have created this forum thread to answer your questions about the differences in the two units.
Use the EOC-3220 EXT with our 18dBi pannel antenna instead of the EOC-3220+
Click here for more information on Universal Wireless Repeater
400mW RF output power for greater range power level can be controlled for flexable deployment.
CLICK HERE FOR CONSOLE CABLE THIS IS USED TO RESET THE UNIT IF YOU FORGET THE IP OR LOCK YOURSELF OUT.
NOTE: This device has adjustable power output and ships in the lowest setting high. To increase the power output to 400mW go to wireless advanced setting and change output power level to extreme.
 CLICK HERE FOR RESELLER PRICED 6 PACK

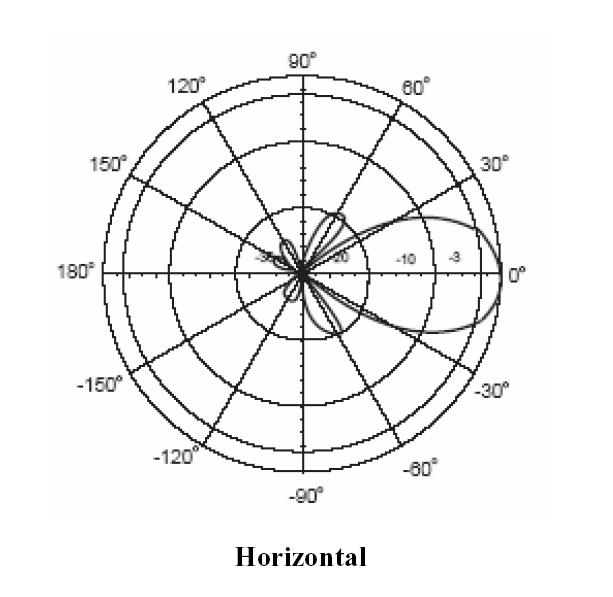

Integrated 16dBi directional patch antenna
802.3af PoE compatible for flexible deployment 48v injector included.
802.11 b/g wireless Client Bridge/Access Point
IP67 rated enclosure for high resistance against dust, water, and weather conditions
includes pole mounting hardware and grounding strap.
There is a u.fl connector inside the case you can run a pigtail through the ethernet port for mounting an external antenna.
Click here for U.FL pigtail
* Product Description :
The Outdoor Wireless Multi-Client Bridge/Access Point/ WDS (wireless distribution system) operates seamlessly in the 2.4 GHz frequency spectrum supporting the 802.11b (2.4GHz, 11Mbps) and the newer, faster 802.11g (2.4GHz, 54Mbps) wireless standards. It's the best way to add wireless capability to your existing wired network, or to add bandwidth to your wireless installation.
To protect your wireless connectivity, it can encrypt all wireless transmissions through 64/128-bit WEP data encryption and also supports WPA. The MAC address filter lets you select exactly which stations should have access to your network. With the Wireless Multi-Client Bridge/Access Point/WDS, you'll experience the best wireless connectivity available today.
* Product Features :
Features Benefits
High Speed Data Rate Up to 54Mbps Capable of handling heavy data payloads such as MPEG video streaming
High Output Power up to 26 dBm Excellent output power spreads the operation distance
IEEE 802.11b/g Compliant Fully Interoperable with IEEE 802.11b/IEEE802.11g compliant devices
Point-to-point, Point-to-multipoint Wireless Connectivity Let users transfer data between two buildings or multiple buildings
WPA/ IEEE 802.1x Authenticator support Powerful data security
WDS (Wireless Distribution System) Make wireless AP and Bridge mode simultaneously as a wireless repeater
Watertight and Weatherproof Avoid water invaded and weather corroded
Wide temperature range and robust mechanical design Delivers reliable, top performance in the most demanding environments
Power-over-Ethernet (IEEE802.3af Compliant) Flexible Access Point locations and cost savings
radio:
Frequency Band: 2.4–2.484GHz
Media Access Protocol:
Carrier Sense Multiple Access with Collision Avoidance(CSMA/CA)
Radio Type: Direct Sequence Spread Spectrum(DSSS)
Operation Channels: 11 for North America
RF Output Power (Typical):
24dBm @ 1,2,5.5 & 11Mbps
23dBm @ 6,9,12 & 18Mbps
22dBm @ 24 & 36Mbps
21dBm @ 48 & 54Mbps
RF Connector: SMA Type
Receive Sensitivity (Typical):
-94dBm @ 1Mbps -92dBm @ 2Mbps
-89dBm @ 5.5Mbps -86dBm @ 11Mbps
-92dBm @ 6Mbps -90dBm @ 9Mbps
-88dBm @ 12Mbps -86dBm @ 18Mbps
-83dBm @ 24Mbps -79dBm @ 36Mbps
-74dBm @ 48Mbps -72dBm @ 54Mbps
Modulation *OFDM:
DBPSK @ 1Mbps DQPSK @ 2Mbps
CCK @ 5.5&11Mbps BPSK @ 6&9Mbps
QPSK @ 12&18Mbps 16-QAM @ 24&36Mbps
64-QAM @ 48&54Mbps
* Spec. :
Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
Standards IEEE802.11b/g, IEEE802.1x, IEEE802.3, IEEE802.3u
Compatibility IEEE 802.11g/ IEEE 802.11b
Power Requirements Active Ethernet (Power over Ethernet) -48 VDC/0.7A
External Unit: Auto sensing 100/240 VAC; 50/60 Hz
Surge Arrester (Option) 20KA Surge Current
Regulation Certifications FCC Part 15/UL, ETSI 300/328/CE
RF Information
Frequency Band 2.400~2.484 GHz
Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)
Modulation Technology Orthogonal Frequency Division Multiplexing (OFDM)
DBPSK @ 1Mbps
DQPSK @2Mbps
CCK @ 5.5 & 11Mbps
BPSK @ 6 and 9 Mbps
QPSK @ 12 and 18 Mbps
16-QAM @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps
Operating Channels 11 for North America, 14 for Japan, 13 for Europe,
Available transmit power
(Typical) 25dBm Min. @1, 2, 5.5 and 11Mbps
23dBm Min. @6, 9, 12, 18Mbps
22dBm Min. @24, 36Mbps
21dBm Min. @48, 54Mbps
RF Connector u.fl internal connector
Networking
Topology Ad-Hoc, Infrastructure
Operation Mode Point-to-Point/ Point-to-Multipoint Bridge/ AP/ Client Bridge/ WDS
Interface One 10/100Mbps RJ-45 LAN Port
Security IEEE802.1x authenticator / RADIUS client (EAP-MD5/TLS/TTLS) support in AP mode
WPA2/WPA/ Pre Share KEY (PSK)/ TKIP/ AES
MAC address filtering
Hide SSID in beacons
IP Auto-configuration DHCP client/server
Management
Configuration Web-based configuration (HTTP)
Telnet configuration
SNMP V1(MIBI, MIBII)
Firmware Upgrade Upgrade firmware via web-browser
Serial Interface (RS-232)
TFTP
Physical
Dimensions 200(L)mm * 135.2(W)mm * 200(H)mm
Weight 1.2 Kg (2.6 lbs)
Environmental
Temperature Range Operating: -20C to 60C (-4F to 140F)
Storage: -40C to 80C (-40F to 176F)
Humidity (non-condensing) 5%~95% Typical
eoc-3220 +
|
