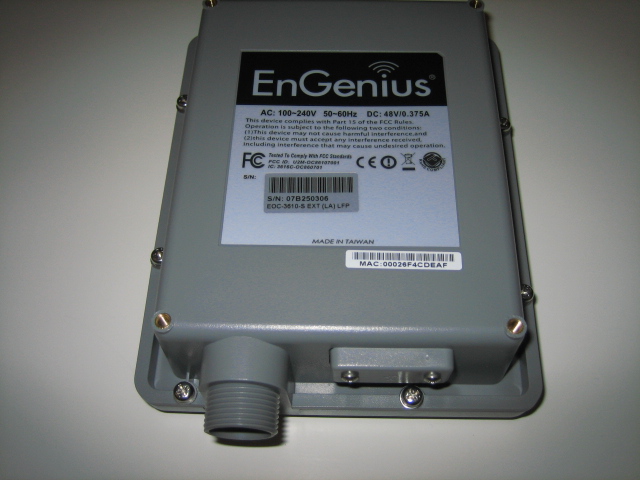

EOC-3610S EXT Wireless High Power and High Gain Client Bridge/Access Point/ WDS 5dBi Omni antenna with SMA connector
EOC-3610S EXT has high transmitted output power and high receivable sensitivity.
High output power and high sensitivity can extend range and coverage to reduce
the roaming between APs to get more stability wireless connection.
 CLICK HERE FOR RESELLER PRICED 10 PACK
CLICK HERE FOR CONSOLE CABLE THIS IS USED TO RESET THE UNIT IF YOU FORGET THE IP OR LOCK YOURSELF OUT.
Click here for SMA pigtail
EOC-3610-S Ext Features
600mW RF output power for greater range
5dBi removeable antenna, RP-SMA connector
802.3af PoE compatible for flexible deployment
802.11 b/g wireless client bridge/Access Point
IP67 rated enclosure for high resistance against fire, smoke, water, and weather
conditions
click
here for pdf spec sheet
Technical Specifications
Data Rates
Available transmit power
Environment
1, 2, 5.5, 6, 9, 11, 12, 18, 24,
(Typical)
Temperature Range
36, 48, 54 Mbps
· 2.412~2.472G(IEEE802.11g)
Operating: -20°C to 60°
Standards
27dBm @6 ~ 24Mbps
Storage: -40°Cto 80°
IEEE802.11b/g, IEEE802.3,
25dBm@36Mbps
Humidity (non-
IEEE802.3u, IEEE802.3af,
24 dBm@48Mbps
IEEE802.1f, IEEE802.1x
23dBm@54Mbps
condensing)
Compatibility
· 2.412~2.472G(IEEE802.11b)
5%~95% Typical
IEEE 802.11g/ IEEE 802.11b
28 dBm@1, 2, 5.5 and 11Mbps

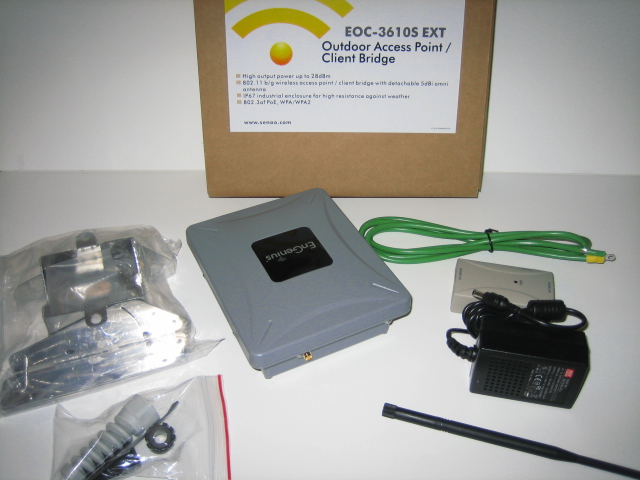

Package Contents
Power Requirements
RF Connector
Outdoor Wireless Client
Bridge unit
Active Ethernet (Power over
SMA (Female Reverse) Type
48V, 0.375A AC/DC
Ethernet) 48 VDC/0.375A
Networking
adapter with wall-plug
External Unit: Auto sensing
Topology
power code
100/240 VAC; 50/60 Hz
One 5dBi SMA dipole
Ad-Hoc, Infrastructure
Regulation Certifications
antenna.
Operation Mode
Inline Power Injector (PoE)
FCC Part 15 B & C,
Point-to-Point/ Point-to-Multipoint
1.8m Grounding Cable
CE: EN 300328, EN 301489
Bridge/ AP/ Client Bridge/ WDS
User manual CD-disc
EN 60950
Wall mounting kit
Interface
Mast mounting kit
RF Information
One 10/100 RJ-45 port
Frequency Band
One console RS-232 port
802.11b/g: U.S., Europe and
Security
Japan product covering 2.4 to
IEEE802.1x Authenticator /
2.484 GHz, programmable for
RADIUS Client (EAP-
different country regulations
MD5/TLS/TTLS) Support in AP
Media Access Protocol
Mode
Carrier Sense Multiple Access
WPA/WPA2 Supplicant support
with Collision Avoidance
in Client Bridge Mode
(CSMA/CA)
WPA /WPA2/ Pre Share KEY
(PSK) with TKIP/AES
Modulation Technology
MAC address filtering (AP only)
Orthogonal Frequency
Hide SSID in beacons
Division Multiplexing (OFDM)
VLAN Pass-through
DBPSK @ 1Mbps
IP Auto-configuration
DQPSK @2Mbps
CCK @ 5.5 & 11Mbps
DHCP client/server
BPSK @ 6 and 9 Mbps
Management
QPSK @ 12 and 18 Mbps
16-QAM @ 24 and 36 Mbps
Configuration
64-QAM @ 48 and 54 Mbps
Web-based configuration (HTTP)
Operating Channels
Telnet Configuration
11 for North America
SNMP V1, V2c
14 for Japan
Firmware Upgrade
13 for Europe
Receive Sensitivity
Upgrade firmware via web-browser
(Typical)
Serial Interface (RS-232)
· 2.412~2.472G(IEEE802.11g)
TFTP
6Mbps@ -91dBm;
54Mbps@ -74dBm
Physical
· 2.412~2.472G(IEEE802.11b) Dimensions (HxWxD)
11Mbps@ -90dBm
163.8(L)mm * 135.2(W)mm *
1Mbps@ -95dBm
47.0(H)mm
Weight
1.2 Kg (2.6 lbs)
|
