This antenna is matched for best performance with the Engenius equipment. 4x the range of a stock 3dBi.

 Use for applications that require more than 1 mile in all directions.

 Includes pole mounting hardware n female connector.   It has a standard N female connector to fit any of our pigtails.

optional wall mount

•Frequency: 2.4-2.5GHz
•Gain: 12dB
•Polarization: Vertical
•Horizontal Beamwidth: 360 degree
•Vertical Beamwidth: 15 degree
•VSWR: < 1.5 : 1
•Max Power: 50 watts
•Lightning Prot: DC ground
•Standard Connector: N-type female (50 ohm)
•Radome Material: White Fiberglass
•Operating Temperature: -40°C to +70°C
•Length: 63.0in (160cm)
•Weight: 2.5lb (1.12kg)
•Mounting: 2.0in (5.1cm) max. diameter mast
•Includes mounting hardware: 2 aluminum brackets, 2 U-bolts 2.7 in (6.9cm)

 Applications: RV parks, WISP access points. Marina main access point.

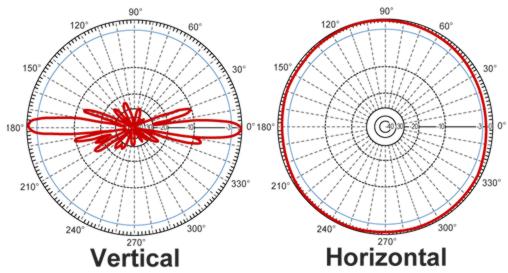

 This antenna will go in the for a long distance 360 degrees in the horizontal plane, and 15 degrees in the verticle as in the charts below.
