Engenius Senao 200mW CB3 Client Bridge 2611-CB3-PLUS-DELUXE



return to store



Click for our price



PDF operations manual

PDF specs


Dual mode client bridge / access point

Features:

Up to 23dBm(200mW) RF Output Power

Up to 9 times coverage of Regular Multi-Client Bridge  like Linksys WET11

11Mbps IEEE 802.11b Compliant - Fully Inter-operable with IEEE 802.11b

Point-to-point, Point-to-multipoint, Access Point

True Plug and Play *No drivers needed, easy and quick to connect your Ethernet device to your Wireless Network

Power-over-Ethernet

64 / 128-bit WEP data encryption

Hide SSID, Wireless Isolation in AP mode (AP Mode)

DHCP Client Simplifies network administration

 Web-based configuration helps administrators to remotely configure or manage the Multi-Client Bridge with a web browser

 MAC address filtering (AP Mode) Ensures secure network connection

 Seamless Roaming allowing users to travel between Access Points without losing their network connection

General:  Data Transfer Rates: 11, 5.5, 2, and 1 Mbps with Auto-Fall Back • Frequency Band 2.400 ~ 2.484 Ghz • Range (open environment) • 11 Mbps (23dBm output power) • 5.5 Mbps (23dBm output power) • 2 Mbps (23dBm output power) • 1 Mbps (23 dBm output power) • Compatibility IEEE 802.11b compliant • Regulation Certifications FCC Part 15/UL • Power Supply : 11VDC ± 10% • Device: 12V/1A RF Information: • Radio type Direct Sequence
• Operation Channel 11 for North
• Modulation: 11Mbps / 5.5Mbps
2Mbps: DQPSK 1Mbps: DBPSK • RF Connector TNC Female-
• RF Output power 23dBm(200mW)
• WEP data encryption 64/128bit Network: • Topology Point-to-Point / Point-
• Interface One 10Base-TRJ-45
• Firmware Upgrade via TFTP • Security: MAC address filtering
WEP encryption (64/128)
• Hide SSID in beacons, stations
(AP Mode)  • IP Auto-configuration DHCP
• Management: Web-based configuration Environment: • Temperature Range: 0-55° C (32-131° F)
-20-80° C (-4-176° F)
• Humidity (non-condensing) 5%~
Physical Specifications: • Dimensions: 125(L)mm x 108(W)mm x 31(H)
4.9(L)in x 4.3(W)in x 1.2(H)in • Weight 350g (0.8lbs)

Range (open environment)
11 Mbps: 300m/450m
5.5 Mbp: 400m/600m
2 Mbps: 500m/750m
1 Mbps: 800m/1200m

Rec. Sensitivity (@FER=0.08)
11 Mbps <-87dbm
5.5 Mbps <-90dbm
2 Mbps <-93dbm
1 Mbps <-95dbm
Network Information
Network Architecture Support ad-hoc, peer-to-peer networks and infrastructure (access point)
Drivers: Windows 95/98/ME/2000/NT 4.0/CE/XP, LINUX (wlan-ng, hostap)
Roaming: IEEE802.11b compliant
Security: 64/128-bit WEP data encryption


Radio
Frequency Band: 2.4 – 2.484 GHz
Radio Type: Direct Sequence Spread Spectrum (DSSS)
Modulation: CCK (11, 5.5Mbps) DQPSK (2Mbps) DBPSK (1Mbps)
Operation: Channels 11 for North America, 14 for Japan, 13 for Europe, 2 for Spain, 4 for France
RF Output Power: 23dBm(200mW)--FCC
Antenna: RP-TNC-MALE (on device), MMCX on Radio Card

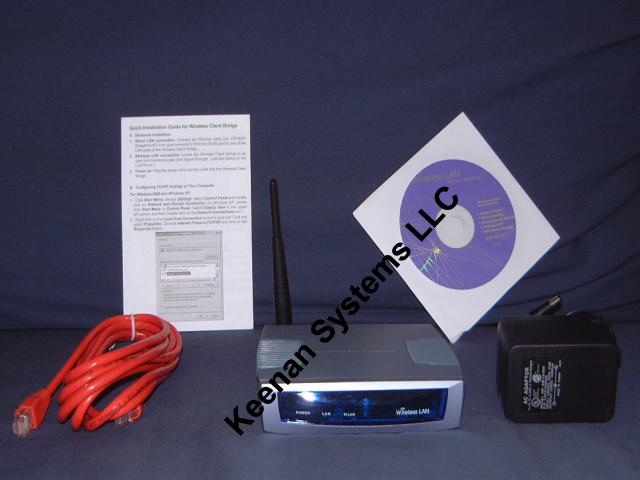

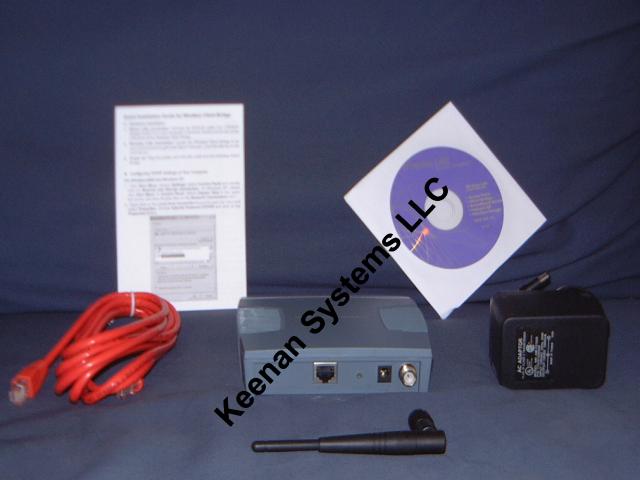

Item include:
