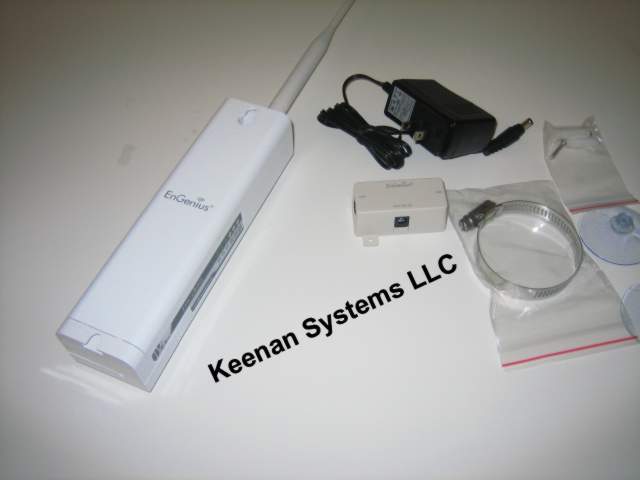

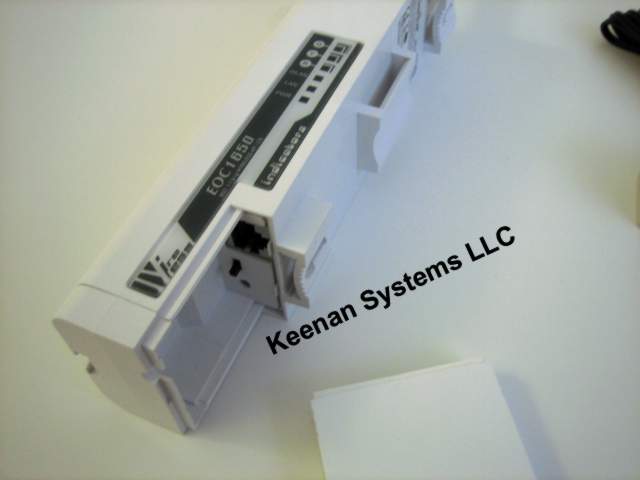

The EnGenius EOC-1650 is an 802.11g Outdoor High Power 200mW Client Bridge/Access Point with Signal Strength LED Indicator, Internal 7dBi Panel Antenna & Detachable 5dBi Omni Antenna RP-SMA. PoE (24V) Injector & Pole Mount Strap Included.

Key Differentiators

High 200mw wireless power

• Ensures robust signal to overcome long distances
• Offers greater WiFi coverage than leading brands

Multi-functional device

• Offers multi operation modes for different network topologies
• Modes: Access Point/Client Bridge/Client Router

Signal strength LED Indicator

• Allows network installer for easy deployment

Dual Antenna Design

• Embedded 7dBi panel antenna with external detachable 5dBi omni antenna RP-SMA
• High gain antenna for wireless power up to 1000mW Perfect for both Point-to-Point & Point-to-MultiPoint applications

Power Over Ethernet (24V POE) capable

• Power and data over one single cable for convenient installation
• Less heat dissipation to ensure reliable performance Capable of 300 feet PoE cable length Power Injector Included

Intelligent quality of service (QOS) technology

• Facilitates bandwidth priority for VoIP, video streaming, online gaming

H A R D W A R E S P E C I F I C A T I O N
S O F T W A R E F E A T U R E S
MCU/RF
Atheros AR2315 Single chip
Topology
Infrastructure
Memory
32MB SDRAM
IEEE 802.3 (Ethernet)
Protocol / Standard
Flash
8MB
IEEE 802.3u (Fast Ethernet)
IEEE 802.11b/g (2.4GHz WLAN)
One 10/100 Fast Ethernet RJ-45
Physical Interface
Reset Button
Operation Mode
802.11 b/g: Access Point/Client Bridge/Client Router
One SMA Connector
LAN
DHCP Server
1x Power/ Status
DHCP Client
1x LAN (10/100Mbps)
VPN
VPN pass-through
1x WLAN (Wireless is up)
LED Indicators
Channel Selection (Setting varies by countries)
3x Link Quality (Client Bridge mode)
Transmission Rate
Green: Excellent Quality
11b/g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
Yellow: Good Quality
Wireless
Long distance transmission : 1km to 20km
Red: Poor Quality
Transmit power table
Power Requirements
Active Ethernet (Power over Ethernet) Proprietary PoE design
Signal Strength indication using LEDs (3 colors)
Power Adapter 24V / 0.6A DC
PPPoE (CR mode)
Regulation Certifications
FCC Part 15C/15B, EN 300 328/EN 301 489-1/-17
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
R F S P E C I F I C A T I O N
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
Security
802.1x Authenticator
Frequency Band
2.412 ­2.472 GHz
Hide SSID in beacons
Media Access Protocol
Carrier sense multiple access with collision avoidance (CSMA/CA)
MAC address filtering, up to 50 field
L2 isolation(AP mode)
Modulation Technology
OFDM: BPSK, QPSK, 16-QAM, 64-QAM
Wireless STA (Client) connected list
DSS: DBPSK, DQPSK, CCK
QoS
WMM
Operation Channels
11 for North America
IEEE 802.11g
6Mbps@ -92dBm · 54Mbps@ -74dBm
Receive Sensitivity (Typical)
M A N A G E M E N T
IEEE 802.11b
Configuration
Web-based configuration (HTTP)
1Mbps@ -97dBm · 11Mbps@ -89dBm
FCC
ETSI
Firmware Upgrade
Upgrade firmware via web-browser
Keep latest setting when f/w update
Frequency
Power
Frequency
Power
Administrator Setting
Administrator password change
23dBm@
20dBm@
6~24Mbps
6~24Mbps
Reset Setting
Reboot (press 1second) · Reset to Factory Default (press 5 second)
23dBm@
20dBm@
System monitoring
Status, Event Log
2.412~2.462 GHz
2.412~2.472 GHz
Available transmit power
36Mbps
36Mbps
IEEE 802.11g
IEEE 802.11g
SNMP
v1, v2c
(Average power)
22dBm@
20dBm@
48Mbps
48Mbps
MIB
MIB I, MIB II (RFC1213)
22dBm@
20dBm@
Backup & Restore
Settings through Web
54Mbps
54Mbps
2.412~2.462 GHz
23dBm@
2.412~2.472 GHz
20dBm@
Time setting
NTP (Auto-setting of time)
IEEE 802.11b
1~11Mbps
IEEE802.11b
1~11Mbps
Time setting manually
Tolerance
±1 dBm
Tolerance
±1 dBm
Internal Antenna
1x 7dBi Internal Panel Antenna
E N V I R O N M E N T & P H Y S I C A L
External Antenna
1x 5dBi SMA Antenna
Temperature Range
Operating: -20°C to 70°C (-4°F to 158°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing)
0% ~ 95% typical
Dimensions
L: 7.56" (192mm) x W: 1.89" (48mm) x H: 1.43" (36.2mm)
Weight
0.55 lb. (250g)
