Click here for more information on the dwl-7700ap

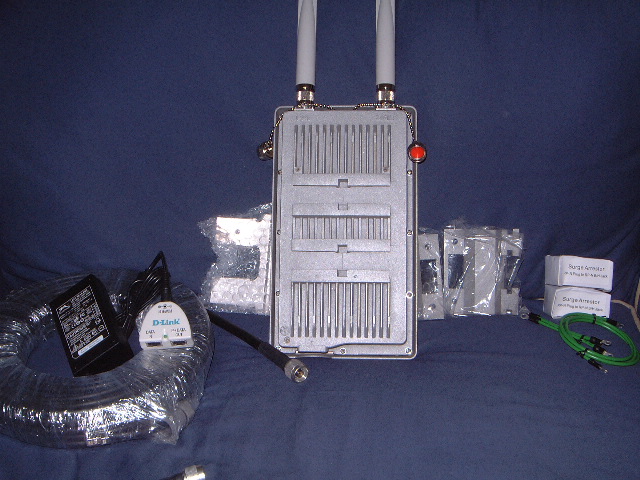

The DWL-7700ap is a complete outdoor A/B/G access point package with detachable antennas rptnc-m connectors, Weatherproof Metal enclosure, waterproof ethernet cable, power over ethernet injector, Lightning surge suppressors, mounting hardware and rptnc-f to rptnc-m pigtail.
The left antenna connector is 5Ghz and the right is 2.4Ghz
and weather tight caps are provided in case one band is not being used. A
heavy pigtail is also included and dual lightning protectors.
This ap supports 802.3AF Power over ethernet and includes a one port 48v injector. The AP can also be powered by the new DES-1316 16 port POE 10/100 switch. The web managed switch can also be used to reset the AP remotely or power it down off hours for security.
Click here for more information on the DES-1316 16 port POE 10/100 switch

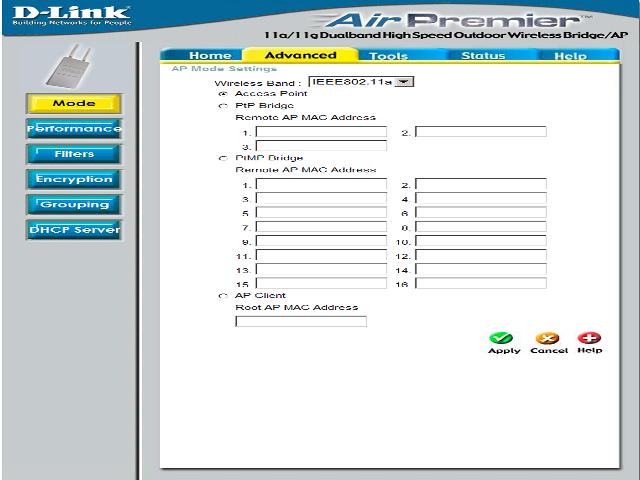

The 7700 supports access point, point to point bridge and point to multi point bridge modes.

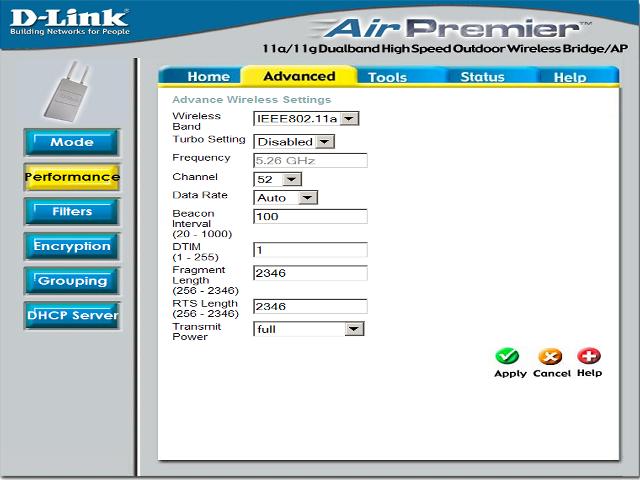

108Mbps turbo 802.11a and 802.11g is supported.

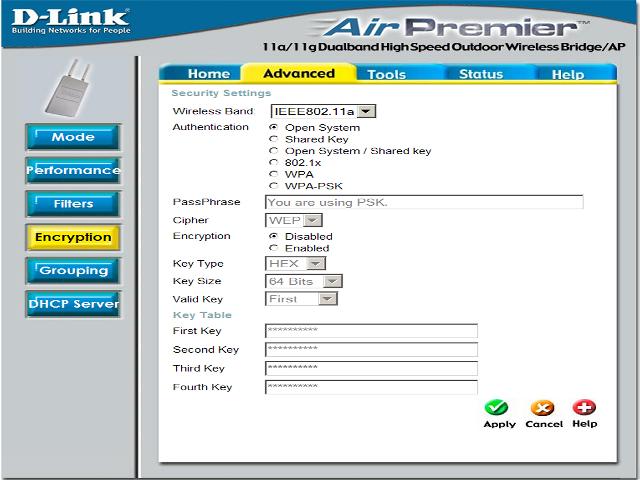

Full wireless security options are supported including 802.1x and wpa and mac filtering.
