EnGenius EOA3630 600mW outdoor wireless access point
The outdoor wireless device EOA3630 is a powerful,
enhanced, enterprise scale product with 7 multi-functions. External N-type
connector is ideal for upgradeable antenna to increase range and receive
sensitivity. It features output power level adjustment, narrow bandwidth
selection, traffic shaping and real-time RSSI indicator.

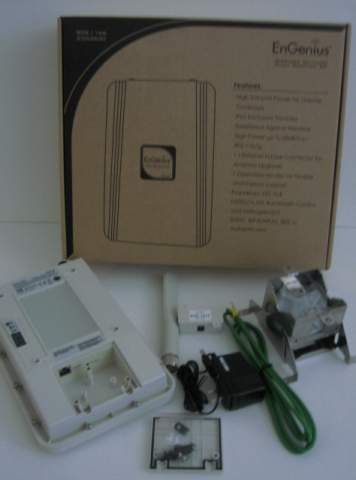

EOA3630 comes with complete wall/pole mounting kit and supports PoE (24v)
capable for quick outdoor installation. To ensure wireless security, it provides
full coverage of latest security encryption mechanisms including WPA2, WPA, WEP
and 802.1x.
Beside upgradable N-type antenna connector which makes it a scalable solution
for all possible project requirements. Stable and highly reliability design plus
IP65 sealed enclosure lets
user not to worry about operation in harsh environment.
Access point/Client Bridge/Repeater/WDS AP/WDS CB/Client
Router/AP Router
Flash
8 MB
LAN
DHCP Server
DHCP Client
Physical Interface
1 x RJ-45 : 10/100 Fast Ethernet
1 x Reset Button
WAN
PPPoE/PPTP (Client Router /AP Router mode)
1 x Power/ Status
Router
NAT/ NAPT
1 x LAN (10/100Mbps)
VPN
VPN pass-through (PPTP, L2TP, IPSEC)
1 x WLAN (Wireless is up)
LEDs Status
3 x Link Quality (Client Bridge mode)
Wireless Mode - 11b / 11g / Disable
Green:
Excellent Quality
Channel Selection (Setting varies by Country)
Yellow:
Good Quality
Transmission Rate11 b/g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
Red:
Poor Quality
SuperG: 108Mbps
Distance Control (Ack timeout)
Power Requirements
Active Ethernet (Power over Ethernet)24V/0.6A
Wireless
Signal Strength
Regulation Certifications
FCC Part 15C/15B/15E, EN301 893, EN 300 328, EN 301 489-1/-17,
Channel Bandwidth Selection: 20/10/5MHz
EN60950
RSSI Indicator (Client Bridge mode)
Auto Channel Selection
R F S P E C I F I C A T I O N
AP Detection
MSSID up to 4
Frequency Band
2.412~2.484 GHz
BSSID
Media Access Protocol
Carrier sense multiple access with collision avoidance (CSMA/CA)
WEP Encryption-64/128/152 bit
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP)
Modulation Technology
OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
802.1x Authenticator
Hide SSID in beacons
Operation Channels
11 for North America, 14 for Japan, 13 for Europe
Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs)(AP mode)
MAC Filter(AP mode)
IEEE802.11g
IEEE802.11b
Security
Wireless STA (Client) connected list
Receive Sensitivity (Typical)
6Mbps@ -92dBm
1Mbps@ -97dBm
QoS
WMM
54Mbps@ -74dBm
11Mbps@ -89dBm
IEEE802.11g
IEEE802.11b
27dBm@6~24Mbps
28dBm@1 ~ 11Mbps
Available transmit power
25dBm@36Mbps
M A N A G E M E N T
(Average power)
23dBm@48Mbps
22dBm@54Mbps
Configuration
Web-based configuration (HTTP)/Telnet
Tolerance = ±1 dBm
Tolerance = ±1 dBm
Firmware Upgrade
Upgrade firmware via web browser
Keep latest setting parameter when firmware upgrade
Antenna
1 x N-type 5dBi Omni Antenna
Administrator Setting
Administrator password change
Reset Setting
Reboot
Reset to Factory Default
E O A 3 6 3 0 B A C K P A N E L
System monitoring
Status, Statistics and Event Log
SNMP
V1 , V2c
MIB
MIB I , MIB II(RFC1213)
Bandwidth Measurement
Traffic Shaping
External Antenna
Backup & Restore
Settings through Web
N-Type Connector
Diagnostic
Ping Function and Trace-route
E N V I R O N M E N T & P H Y S I C A L
Signal Indicators
Temperature Range
Operating: -20°C to 70°C (-4°F to 158°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing)
5% ~ 95% typical
Dimensions
L: 10.24" (260mm) x W: 6.89" (175mm) x H: 2.56" (65mm)
Weight
1.49 lb. (680g)
Reset button
RJ45 connector
