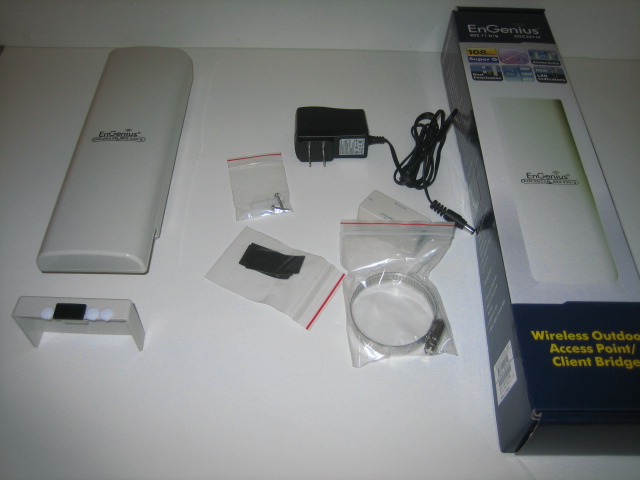

EnGenius 6000mW EIRP EOC2611P 802.11bg outdoor wireless access point
Integrated Dual Polarity Antenna Design
o Selectable vertical or horizontal antenna polarization
o Operates in horizontal polarity to avoid interference from standard
vertical-polarized Wi-Fi devices
o Allows service provider to utilize multi-polarization for best performance

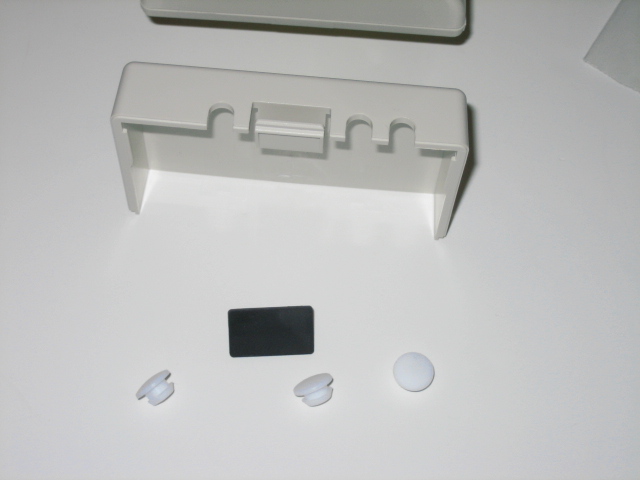

· Waterproof Cable Accessory Kit
o Prevents rain and dew get into the device through cables and connector holes
o Ensures higher waterproof quality against water and moisture
· High 600mW Wireless Power and 10dBi directional antenna gives you 6000mW of
power EIRP.
o Ensures robust signal to overcome long distances
o Offers superior WiFi coverage over leading brands
· Dual Antenna Design
o Embedded 10dBi DUAL POLARITY panel antenna with external connector for
upgradeable antenna
o Perfect for both Point-to-Point and Point-to-MultiPoint applications
· Signal Strength LED Indicator (Client Bridge Mode)
o Allows network installer for easy deployment
· Multiple Wireless Names (AP mode)
o Broadcasts multiple SSID’s in one device
o Permits different levels of network access (VLAN Tagging)
· Power-over-Ethernet (24V PoE) Capable
o Power and data over one single cable for convenient installation
o Less heat dissipation to ensure reliable performance
o Capable of 300 feet PoE cable length
o Power Injector Included
T H E L E A D E R I N L O N G R A N G E B U S I N E S S C L A S S W I R E L E S
S D A T A
EOC-2611P Technical Specifications Specifications may change without notice.
H A R D W A R E S P E C I F I C A T I O N S
S O F T W A R E F E A T U R E S
MCU/RF
Atheros AR2316 Single chip
General
Memory
32MB SDRAM
Topology
Infrastructure
Flash
8MB
Protocol / Standard
802.3 (Ethernet) · 802.3u (Fast Ethernet) · 802.11b/g (2.4GHz WLAN)
Physical Interface
One 10/100 Fast Ethernet RJ-45 · One Reset Button · One RP-SMA
Operation Mode
802.11b/g: Access Point, Client Bridge, Client Router, WDS AP/CB
Connector · One switch (external and internal antenna switching)
LAN
DHCP Server · DHCP Client
Power/ Status · LAN (10/100Mbps)·WLAN (Wireless is up)
VPN
VPN - pass through
3 x Link Quality (Client Bridge mode)
LED Indicators
Green:
Excellent Quality
Channel Selection (Setting varies by countries)
Yellow:
Good Quality
Transmission Rate
Red:
Poor Quality
11 b/g:54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps
Super G : 108 Mbps
Power Requirements
Active Ethernet (Power over Ethernet) Proprietary PoE design
Wireless
Long distance transmission : 1km to 30km
Power Adapter 24 V/0.6A DC
Transmit power table
Regulation Certifications
FCC Part 15C/15B, EN 300 328/EN 301 489-1/-17, EN60950
Signal Strength indication using LEDs
Narrow Bandwidth 5MHz/10MHz/20MHz Support
PING function and Trace Route function
R F S P E C I F I C A T I O N S
PPPoE(CR mode) · MSSID Support · VLAN Support
Frequency Band
802.11b/g: 2.412~2.472GHz
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
Modulation Technology
OFDM = BPSK, QPSK, 16-QAM, 64-QAM
Security
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
DSSS = DBPSK, DQPSK, CCK
802.1x Authenticator · Hide SSID in beacons
Operating Channels
802.11b/g11 for North America, 14 for Japan, 13 for Europe
MAC address filtering, up to 50 field
Wireless STA (Client) connected list
802.11g
802.11b
Receive Sensitivity (Typical)
-92 dBm @ 6Mbps
-97 dBm @ 1Mbps
QoS
WMM
-74 dBm @ 54Mbps
-89 dBm @ 11Mbps
Management
FCC
Frequency
Power
Configuration
Web-based configuration (HTTP)
Firmware Upgrade
Upgrade firmware via web-browser · Keep latest setting when f/w update
Available transmit power
28dBm@6~24Mbps
2.412~2.462 GHz
(Average power)
26dBm@36Mbps
IEEE 802.11g
Administrator Setting
Administrator password change
24dBm@48Mbps
23dBm@54Mbps
Reset Setting
Reboot (press 1 second) · Reset to Factory Default (press 5 seconds)
2.412~2.462 GHz
28dBm@1~11Mbps
System monitoring
Status, Event Log
IEEE 802.11b
SNMP
V1, V2c
Antenna Specification
Gain
10dBi
MIB
MIB I, MIB II (RFC1213) and Private MIB
Radiation
Directional
Backup & Restore
Settings through Web
Frequency Band Range
2.4 - 2.5GHz
Time setting
NTP (Auto-setting) · Manual setting
Internal Antenna
Horizontal -3dB Bandwidth
70°
Vertical -3dB Bandwidth
35°
E N V I R O N M E N T & P H Y S I C A L
Antenna Polarity: Dual-Polarized; Vertical/Horizontal
Temperature Range
Operating: -20°C to 70°C (-4°F to 158°F)
Polarity Selection: Software Controlled
Storage: -30°C to 80°C (-22°F to 176°F)
External Antenna
1* RP-SMA connector
Humidity (non-condensing)
0%~90% typical
Dimensions
Length: 10.24" (260mm) x Width: 3.31" (84mm) x Height: 2.17" (55mm)
Weight
0.84 lb. (380g)
Signal Indicators
Internal Antenna Pattern
RJ-45 Port
Reset
Ext. & Int.
External Antenna
Antenna Switch
RP-SMA Connector
