Overview
The nature of today’s network security threats has evolved. While basic L2-4
firewall functionality is still a mandatory element of network security, new
breeds of dynamic attacks are wreaking more havoc than ever before. Not only can
these attacks render a traditional firewall useless, they also require a
constantly updated attack database that guarantees protection. And, they
absolutely must have a hardware platform that can withstand the rigors of
real-time intrusion prevention while maintaining strong levels of performance.

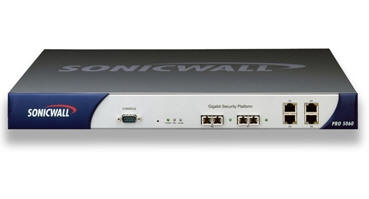

The SonicWALL PRO 5060, part of SonicWALL's PRO Series Internet Security
Platform, is a high-performance, multi-service gigabit network security platform
that protects users and critical network resources from the dynamic,
sophisticated threats that put today's data-intensive networks at risk. The PRO
5060 integrates high-speed gateway anti-virus, anti-spyware, intrusion
prevention, content filtering and anti-spam capabilities along with advanced
wireless LAN features, deep inspection firewall and IPSec VPN into a single
solution that is easy to deploy and manage. Available in both 10/100/1000 copper
and copper/fiber interface versions, the PRO 5060 incorporates a wide array of
networking and security features, making it the ideal solution for a multitude
of applications.
In addition to gigabit stateful inspection performance, the PRO 5060 ships with
SonicOS Enhanced, enabling business continuity and flexibility features such as
ISP failover, WAN redundancy and load balancing, object and policy-based
management and more. The PRO 5060 also comes standard with 2,000 Global VPN
Client licenses, ViewPoint reporting software, one year of Gateway Anti-Virus,
Anti-Spyware and Intrusion Prevention Service, 30 days of Content Filtering
Service and gateway-enforced Network Anti-virus and 90 days of SonicWALL
support. With SonicWALL's PRO 5060, get the performance you want and the
protection you need.
To view screen shots of the features in SonicOS Enhanced, click on the following
links:
Create access rules with objects
Group network objects together
Flexible policy configuration with zones
Increase business continuity with failover and load balancing
Granular NAT (Network Address Translation) rules
The PRO 5060 can be easily managed remotely as part of a multi-firewall and VPN
environment through a Web interface or using SonicWALL’s industry-leading Global
Management System (GMS). This gives network administrators an economical yet
powerful set of tools for rapid deployment, configuration, and management of
global security policies from a central location.
To learn more, please view the PRO 5060 portion of our Comprehensive Product
Demo.
Key Features & Benefits
Real-Time Gateway Anti-Virus, Anti-Spyware and Intrusion Prevention. The PRO
5060 extends security from the network core to the perimeter by integrating
support for SonicWALL's Gateway Anti-Virus, Anti-Spyware and Intrusion
Prevention Service, delivering real-time protection against the latest blended
threats, including viruses, spyware, worms, Trojans, software vulnerabilities
and other malicious code.***
802.1q Virtual LANs. The PRO 5060 provides support for 802.1q VLANs using
virtual interfaces with VLAN ID tag assignments. Virtual interfaces provide many
of the same features as physical interfaces, including zone assignment, DHCP
Server, and NAT and Access Rule controls.
Real-Time Blacklist Spam Filtering. The PRO 5060 provides the ability to use DNS
to query Real-Time Black List (RBL) services that track well-known spam and
open-relay SMTP servers, and to deny SMTP connections from servers that appear
on the lists.**
Dynamic RIP and OSPF Routing. The PRO 5060 provides full support for OSPF (Open
Shortest First Path) and RIP (Router Information Protocol) dynamic routing
protocols. **
Onboard Quality of Service (QoS) Features. The PRO 5060 uses industry-standard
802.1p and Differentiated Services Code Points (DSCP) Class of Service (CoS)
designators to provide powerful and flexible bandwidth management that is vital
for Voice over IP (VoIP), multimedia content and business-critical applications.
Powerful Content Filtering. The PRO 5060 supports SonicWALL's Content Filtering
Service, providing an enterprise-class, scalable content filtering service that
enhances productivity and security without requiring additional server or
deployment costs.
Deep Packet Inspection Firewall. The PRO 5060 features a configurable, high
performance deep packet inspection firewall for extended protection to key
Internet services such as Web, e-mail, file transfer, Windows services, and DNS.
Integrated Wireless LAN Services. In addition to being an integrated firewall
and VPN security appliance, the PRO 5060 functions as a secure wireless switch
and controller that automatically detects and configures SonicPoints, SonicWALL
wireless access points, as they are added to the network while simultaneously
enforcing security policies on all wired and wireless traffic.
ISP Failover and Load Balancing. The PRO 5060 offers the ability to designate
one of the user-assigned ports as a secondary WAN port that can be used in both
“active-active” and" active-passive" failover configuration, providing a highly
efficient method for distributing or load sharing outbound WAN traffic.
Multiple Interfaces per Security Zone. Network administrators can group multiple
physical interfaces on the PRO 5060 into logical "zones" for ease of management
and flexibility. This provides tremendous flexibility, scalability and added
internal security when deploying SonicWALL firewalls in various network
topologies.
Object/Policy-based Management. The PRO 5060 provides the ability to define an
object such as a user group, network, service or interface. When security
policies change, the administrator can modify the pre-defined object and
propagate the changes instantly without redefining rules. This enables
businesses to implement and manage security policies easily and consistently.
Policy-based NAT. In addition to NAT (many-to-one) functionality, the PRO 5060
exposes control of NAT policies to administrators for one-to-one NAT,
many-to-many NAT, one-to-many NAT, inbound Port Address Translation (PAT),
flexible NAT (for overlapping IP addresses), as well as NAT policies on
selective source/destination/source translations. The result is greater control
and flexibility to support and manage various NAT requirements.
Comprehensive Central Management Support. Every SonicWALL Internet security
appliance can be managed using SonicWALL's award-winning Global Management
System, which provides network administrators with the tools for simplified
configuration, enforcement and management of global security policies, VPN, and
services, all from a central location.
Return to the Top
Specifications
Note: Acrobat Reader required to view PDF Documents.
SonicWALL PRO 5060 Datasheet (pdf)
Hardware
Processor: Intel Xeon main processor with Cavium Nitrox cryptographic processor
Interfaces:
PRO 5060c: (6) 10/100/1000 auto-sensing Ethernet Copper Ports
PRO 5060f: (2) SX/SC multimode Fiber and (4) 10/100/1000 auto-sensing Ethernet
Copper Ports
Console: (1) Serial Port
Dimensions:
1U rack-mountable 19.00 x 16.25 x 1.75 inches (43.18 x 41.23 x 4.45 cm)
Weight:
15.55 lbs (7.05 kg)
Power: 100V to 240 VAC
Max Power Consumption: 120 W
Total Heat Dissipation: 409 BTU
Security
Deep Packet Inspection hardware and firmware architecture
Unlimited number of users
Concurrent connections: 750,000
Stateful throughput: 2.4 Gbps (bi-directional)1
VPN
IPSec VPN, compatible with other IPSec-compliant VPN gateways
Bundled with 2,000 VPN client sessions for remote users (6,000 max)
Supports up to 4,000 VPN site-to-site VPN policies
3DES and AES Performance: 700 Mbps2
Value Added Services
SonicWALL Hardware Failover
The PRO 5060 ships standard with the following SonicWALL security services: One
year of Gateway Anti-Virus, Anti-Spyware and Intrusion Prevention Service; 30
days of Network Anti-Virus (50 user license); 30 days of Content Filtering
Service Premium Edition; ViewPoint reporting software.
Network
Network Address Translation (NAT)
Dynamic Host Configuration Protocol (DHCP)
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Warranty
One-year warranty for repair or replacement of any defective product due to
manufacturer's defects
90 days support and software updates
Access to SonicWALL electronic support tools
Standards
TCP/IP, UDP, ICMP, HTTP, HTTPS, RADIUS, IPSec, ISAKMP/IKE, SNMP, L2TP, DHCP,
PPPoE, PPTP
Regulatory Compliance
FCC Class A, ICES Class A, CE, C-Tick, VCCI Class A, BSMI Class A, MIC, NOM, UL,
cUL, TUV/GS
Certifications
ICSA Firewall 4.1, ICSA IPSec VPN 1.0d
Environment
Temperature: 40-105 °F, 5-40 °C
Humidity: 10-90% non-condensing
MTBF
6.8 years
1 Testing Methodologies: Maximum performance based on RFC 2544 (for firewall).
Actual performance may vary depending on network conditions and activated
services.
2 VPN throughput measured using UDP traffic at 1280 byte packet size adhering to
RFC 2544.
Return to the Top
SonicWALL PRO 5060 Product and Upgrade Part Numbers
SonicWALL PRO 5060
Internet Security Appliance - US/Canada 01-SSC-5381
Internet Security Appliance - International 01-SSC-5383
Internet Security Appliance - Japan 01-SSC-5385
SonicWALL PRO 5060f
Internet Security Appliance - US/Canada 01-SSC-5382
Internet Security Appliance - International 01-SSC-5384
Internet Security Appliance - Japan 01-SSC-5386
SonicWALL Support
8X5 for SonicWALL PRO 5060 01-SSC-5620
24X7 for SonicWALL PRO 5060 01-SSC-5621
International Support for SonicWALL
PRO 5060 01-SSC-5622
Gateway Anti-Virus, Anti-Spyware and Intrusion
Prevention Service
First Year Included N/A
After First Year 01-SSC-5760
Note: All PRO 5060 appliances ship with 1 Year of FREE
SonicWALL Gateway Anti-Virus, Anti-Spyware and Intrusion
Prevention Service
Complete Anti-Virus
5 Users 01-SSC-3419
10 Users 01-SSC-3420
25 Users 01-SSC-3421
50 Users 01-SSC-3422
100 Users 01-SSC-3423
For more information on Anti-Virus subscriptions greater than
100 users, contact a SonicWALL reseller near you.
Note: All PRO 5060 appliances ship with 30 days of FREE
SonicWALL Network Anti-virus (50 user license)
Content Filtering Service
Standard Edition for SonicWALL PRO 5060 01-SSC-5507
Premium Business Edition for SonicWALL
PRO 5060 01-SSC-5654
Note: All PRO 5060 appliances ship with 30 days of FREE
SonicWALL Content Filtering Service Premium Edition
(Unlimited user license)
Global VPN Client
Single User License 01-SSC-5310
10 User License 01-SSC-5311
50 User License 01-SSC-5313
100 User License 01-SSC-5314
1,000 User License 01-SSC-2897
Global Security Client
5 User License Global Security Client
(1 Year) 01-SSC-5250
10 User License Global Security Client
(1 Year) 01-SSC-5251
25 User License Global Security Client
(1 Year) 01-SSC-5252
100 User License Global Security Client
(1 Year) 01-SSC-5253
ViewPoint
Included N/A
Note: All PRO 5060 appliances ship with FREE SonicWALL
ViewPoint
*** Gateway Anti-Virus requires SonicOS Standard or Enhanced 3.0. Anti-Spyware
requires SonicOS Standard or Enhanced 3.1
** Requires SonicOS Enhanced 3.0
